Ionode Electrodes

Ionode Fluoride Ion Selective Electrode

Range (ppm):     0.02 - 19,000

pH range:            5 - 7

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   OH⁻

Learn More

IH40A Sealed Gel pH Electrode with bullet membrane and S8/PG13.5 connector.

This electrode is intended to be mounted.  Please check your mounting requirements before purchasing.



pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

Sealed Gel Double Junction ORP Electrode

Range:    ±2000mV

Sensor:   Platinum Disk

Body:      Polypropylene

Temp:     0 - 60ºC

Learn More

Intermediate Junction pH Electrode with high temperature capability and replaceable electrolyte. With superior thermal and chemical properties for operation up to 100°C.

pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              PVDF (Kynar)

Temp:             0 - 100ºC

Learn More

Ionode Surfactant (PVC) ISE 1m BNC

Range (ppm):     10 - 14,400

pH range:            2 - 12

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Organic anions and, Cations which resemble the species of interest

Learn More

Ionode Sodium (PVC) ISE 1m BNC

Range (ppm):     0.1 - 23,000

pH range:            2 - 12

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Li⁺, K⁺, Cs⁺, Ca²⁺, Tl⁺, Ag⁺, H⁺

Learn More

Ionode Water Hardness (PVC) ISE 1m BNC

Range (ppm):     1.0 to 10,000 ppm hardness as CaCO­3 (10 µM to 1M)

pH range:            7 - 10

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Na⁺, K⁺, Zn²⁺, Fe²⁺, Cu²⁺, Ni²⁺, Sr²⁺, Ba²⁺

Learn More

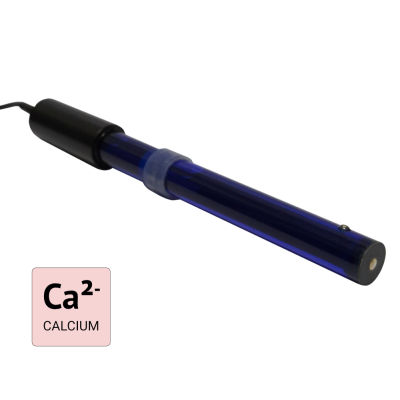

Ionode Calcium (PVC) ISE 1m BNC

Range (ppm):     0.1 - 40,000

pH range:            2.5 - 11

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Pb²⁺, Hg²⁺, H⁺, Sr²⁺, Fe²⁺, Cu²⁺, Ni²⁺, NH₄⁺

Learn More

Ionode Silver Sulphide ISE 1m BNC

Model	Parameter	Measuring Range	Temp. Range	pH Range	Main Interferences	Slope
ISE-Ag2S	S2-	0.003 - 32,000 ppm	0 - 60ºC	>11	Hg+/2+	57mV/decade ± 3mV
	Ag+	0.01 - 108,000 ppm		2 - 8		27mV/decade ± 3mV

Learn More

Ionode Nitrate (PVC) ISE 1m BNC

Range (ppm):     0.2 - 14,000

pH range:            2.5 - 11

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   HS^-, HCO₃-, CO₃^2-, H₂PO₄-, Cl^-, Br^-, I^-, ClO₄^-, ClO₃^-, CN^-, NO₂^-

Learn More

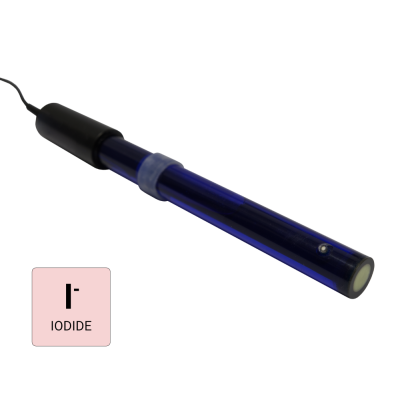

Ionode Iodide ISE 1m BNC

Range (ppm):     0.013 - 130,000

pH range:            2 - 12

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   Br⁻, CN⁻, S²⁻

Learn More

Ionode Cyanide ISE 1m BNC

Range (ppm):     0.2 - 260

pH range:            5 - 7

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   S²⁻, I⁻, Br⁻

Learn More

Ionode Chloride ISE 1m BNC

Range (ppm):     1.8 - 35,500

pH range:            2 - 12

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   S²⁻,Br⁻, I⁻, CN⁻

Learn More

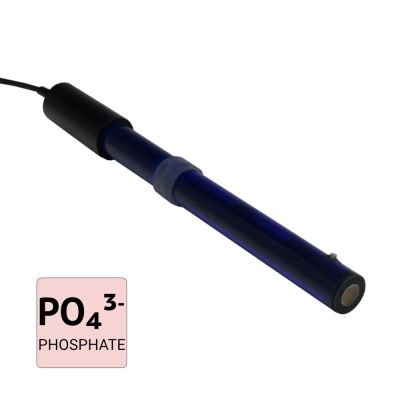

Ionode Phosphate Ion Selective Electrode

Range (ppm):     3.0 - 10,000

pH range:            4 - 5

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   Redox active species

Learn More

Intermediate Junction ORP Electrode with platinum disk and replaceable electrolyte.

Range:    ±2000mV

Sensor:   Platinum Disk

Body:      Polypropylene

Temp:     0 - 60ºC

Learn More

Learn More

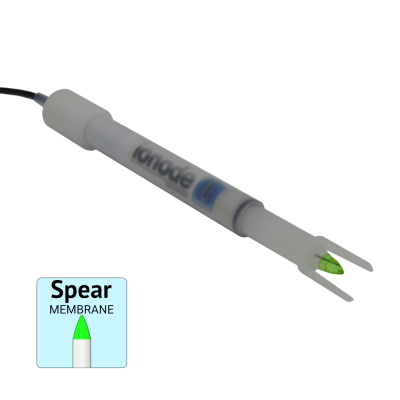

Intermediate Junction pH Electrode with high-temperature capability and replaceable electrolyte.

pH Range:      0 - 14

Membrane:   A Glass – Spear

Body:              PVDF (Kynar)

Temp:             0 - 100ºC

Learn More

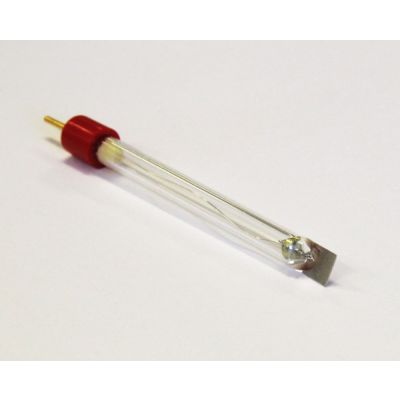

Pt Auxiliary / Counter Electrode - Pt area 10mmx10mmx0.2mm

Ionodes Platinum Auxiliary / Counter Electrode have a large surface area, extra thick platinum for enhanced strength, glass body and a gold plated pin.

Learn More

Reference Electrode - Simple screw top makes refilling quick and easy.

Learn More

Pt Auxiliary / Counter Electrode
Platinum Area: 6.5 x 6.5 x 0.2mm

Ionode's Platinum Auxiliary / Counter Electrode have a large surface area, extra thick platinum for enhanced strength, glass body, and a gold-plated pin.

Learn More

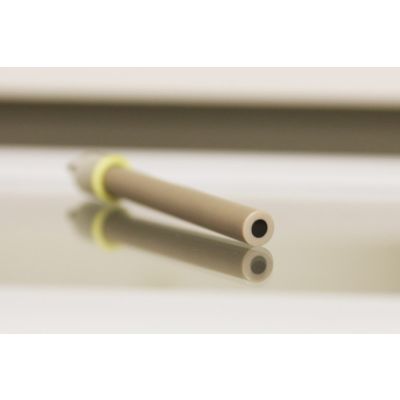

Working Electrode - GC 3mm

Ionode glassy carbon disk electrodes are designed to be used in a range of voltammetric experiments. The glassy carbon  tip is polished to a mirror finish.

Learn More

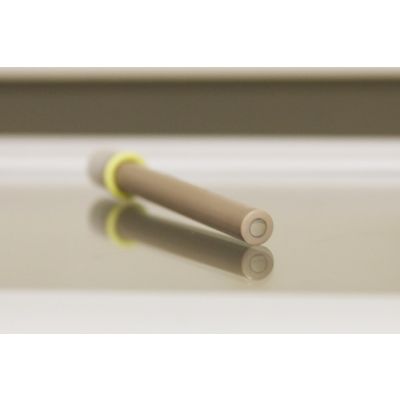

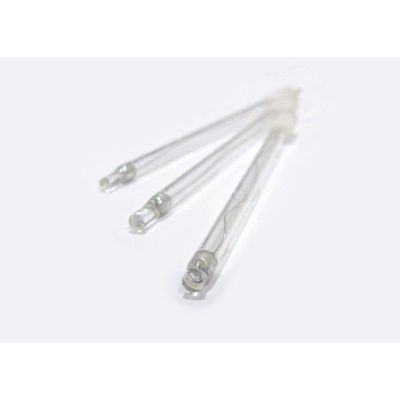

Working Electrode - Platinum 3mm Diameter

Ionode gold button electrodes are designed to be used in a range of voltammetric experiments. The platinum disc is polished to a mirror finish.

Learn More

Ionode Intermediate Junction pH Electrode with replaceable electrolyte, general purpose & automatic temperature compensation.

pH Range:        0 - 14

Membrane:     A Glass – Spear

Body:                Polypropylene

Temp:               0 - 60ºC

Ionode ATC probes are compatible with a range of meters. Please contact us to find out if our probes will work with your meter.

Please note, these electrodes are made to order.



Learn More

Ionode Intermediate Junction pH Electrode with replaceable electrolyte, general purpose & automatic temperature compensation.

pH Range:        0 - 14

Membrane:     A Glass – Bullet

Body:                Polypropylene

Temp:               0 - 60ºC



Ionode ATC probes are compatible with a range of meters. Please contact us to find out if our probes will work with your meter.

Please note, these electrodes are made to order.

Learn More

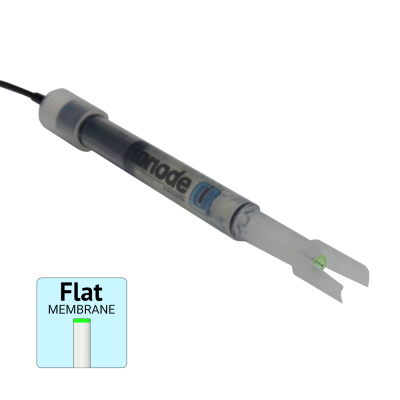

IJ46 Intermediate Junction pH Electrode.

pH Range:      0 - 14

Membrane:   A Glass – Flat

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

Enhanced series Intermediate Junction ORP Electrode with platinum wire tip and replaceable electrolyte. With superior thermal and chemical properties.

Range:    ±2000mV

Sensor:   Platinum Wire

Body:      PVDF (Kynar)

Temp:     0 - 100ºC

Learn More

Intermediate Junction pH Electrode.

pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

IH40A Sealed Gel pH Electrode

pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

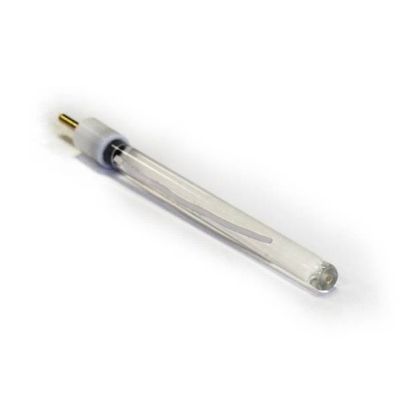

Ionode refillable single junction reference electrode. *Accessories not included. Learn More

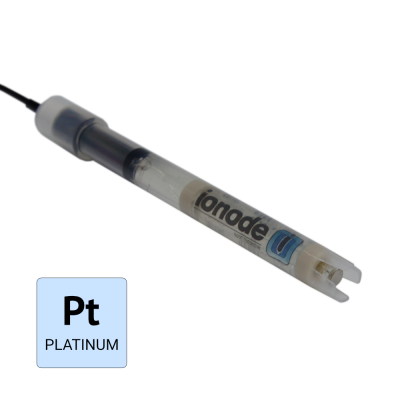

Sealed gel double junction ORP Electrode

Range:    ±2000mV

Sensor:   Platinum Wire

Body:      Polypropylene

Temp:     0 - 60ºC

Learn More

Chloride Titration Electrode featuring Ionode's unique Intermediate Junction reference.

Learn More

Ionode Intermediate Junction pH Electrode with replaceable electrolyte, general purpose.

pH Range:      0 - 14

Membrane:   A Glass – Spear

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

Intermediate Junction Reference Electrode with replaceable electrolyte.

Reference Potential:    +198mV vs SHE

Reference:                       Double Junction Ag/AgCl

Body:                                 Polypropylene

Temp:                                0 - 60ºC

Learn More

Intermediate Junction Gold ORP Electrode, with replaceable electrolyte Learn More

Intermediate Junction Silver Billet Electrode with replaceable electrolyte, for determination of salt and other halides by argentimetric titration Learn More

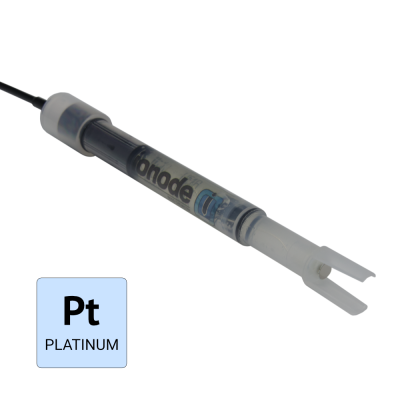

Intermediate Junction ORP Electrode with platinum wire tip and replaceable electrolyte.

Range:    ±2000mV

Sensor:   Platinum Wire

Body:      Polypropylene

Temp:     0 - 60ºC

Learn More
