Electrodes

Single Junction Refillable Reference Electrode with replaceable electrolyte.

Reference Potential:    +680mV vs SHE

Reference:                       Single Junction Ag/Ag₂SO₄

Body:                                 Glass

Temp:                                0 - 80ºC

Learn More

Single Junction Refillable Reference Electrode with replaceable electrolyte.

Reference Potential:    +207mV vs SHE

Reference:                       Single Junction Ag/AgCl

Body:                                 Glass

Temp:                                0 - 80ºC

Learn More

Ionode Fluoride Ion Selective Electrode

Range (ppm):     0.02 - 19,000

pH range:            5 - 7

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   OH⁻

Learn More

IH40A Sealed Gel pH Electrode with bullet membrane and S8/PG13.5 connector.

This electrode is intended to be mounted.  Please check your mounting requirements before purchasing.



pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

Sealed Gel Double Junction ORP Electrode

Range:    ±2000mV

Sensor:   Platinum Disk

Body:      Polypropylene

Temp:     0 - 60ºC

Learn More

Glass bodied refillable calomel reference electrode for laboratory use in various applications including corrosion, general electrochemistry etc.

Reference Potential:    +244mV

Reference:                       Hg/Hg₂Cl₂

Body:                                 Glass

Temp:                                5 - 55ºC

Learn More

Intermediate Junction pH Electrode with high temperature capability and replaceable electrolyte. With superior thermal and chemical properties for operation up to 100°C.

pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              PVDF (Kynar)

Temp:             0 - 100ºC

Learn More

Ionode Surfactant (PVC) ISE 1m BNC

Range (ppm):     10 - 14,400

pH range:            2 - 12

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Organic anions and, Cations which resemble the species of interest

Learn More

Ionode Sodium (PVC) ISE 1m BNC

Range (ppm):     0.1 - 23,000

pH range:            2 - 12

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Li⁺, K⁺, Cs⁺, Ca²⁺, Tl⁺, Ag⁺, H⁺

Learn More

Ionode Water Hardness (PVC) ISE 1m BNC

Range (ppm):     1.0 to 10,000 ppm hardness as CaCO­3 (10 µM to 1M)

pH range:            7 - 10

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Na⁺, K⁺, Zn²⁺, Fe²⁺, Cu²⁺, Ni²⁺, Sr²⁺, Ba²⁺

Learn More

Ionode Calcium (PVC) ISE 1m BNC

Range (ppm):     0.1 - 40,000

pH range:            2.5 - 11

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   Pb²⁺, Hg²⁺, H⁺, Sr²⁺, Fe²⁺, Cu²⁺, Ni²⁺, NH₄⁺

Learn More

Ionode Silver Sulphide ISE 1m BNC

Model	Parameter	Measuring Range	Temp. Range	pH Range	Main Interferences	Slope
ISE-Ag2S	S2-	0.003 - 32,000 ppm	0 - 60ºC	>11	Hg+/2+	57mV/decade ± 3mV
	Ag+	0.01 - 108,000 ppm		2 - 8		27mV/decade ± 3mV

Learn More

Ionode Nitrate (PVC) ISE 1m BNC

Range (ppm):     0.2 - 14,000

pH range:            2.5 - 11

Membrane:        Polymer

Temp:                   0 - 40ºC

Interferences:   HS^-, HCO₃-, CO₃^2-, H₂PO₄-, Cl^-, Br^-, I^-, ClO₄^-, ClO₃^-, CN^-, NO₂^-

Learn More

Ionode Iodide ISE 1m BNC

Range (ppm):     0.013 - 130,000

pH range:            2 - 12

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   Br⁻, CN⁻, S²⁻

Learn More

Ionode Cyanide ISE 1m BNC

Range (ppm):     0.2 - 260

pH range:            5 - 7

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   S²⁻, I⁻, Br⁻

Learn More

Ionode Chloride ISE 1m BNC

Range (ppm):     1.8 - 35,500

pH range:            2 - 12

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   S²⁻,Br⁻, I⁻, CN⁻

Learn More

Ionode Phosphate Ion Selective Electrode

Range (ppm):     3.0 - 10,000

pH range:            4 - 5

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   Redox active species

Learn More

Intermediate Junction ORP Electrode with platinum disk and replaceable electrolyte.

Range:    ±2000mV

Sensor:   Platinum Disk

Body:      Polypropylene

Temp:     0 - 60ºC

Learn More

Ionode Bromide ISE 1m BNC

Range (ppm):     0.79 - 79,900

pH range:            2 - 12

Membrane:        8mm Crystal

Temp:                   0 - 60ºC

Interferences:   I⁻, S²⁻, CN⁻

Learn More

Learn More

Learn More

Intermediate Junction pH Electrode with high temperature capability and replaceable electrolyte with automatic temperature compensation.

pH Range:      0 - 14

Membrane:   A Glass – Spear

Body:              PVDF (Kynar)

Temp:             0 - 100ºC

Ionode ATC probes are compatible with a range of meters. Please contact us to find out if our probes will work with your meter.

Please note, these electrodes are made to order.



Learn More

Intermediate Junction pH Electrode with high-temperature capability and replaceable electrolyte.

pH Range:      0 - 14

Membrane:   A Glass – Spear

Body:              PVDF (Kynar)

Temp:             0 - 100ºC

Learn More

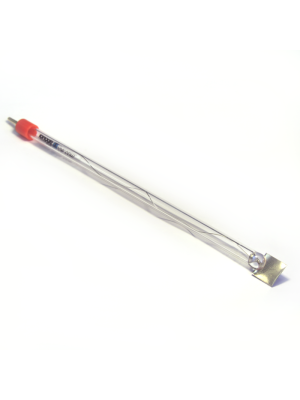

Pt Auxiliary / Counter Electrode - Pt area 10mmx10mmx0.2mm

Ionodes Platinum Auxiliary / Counter Electrode have a large surface area, extra thick platinum for enhanced strength, glass body and a gold plated pin.

Learn More

ECF-1 and ECF-1t are immersible cells recommended for conductivity measurements in clear and contaminated water, sewage with sediments, grease, oil, acids, alkalis. These can also be used for measurements in water paints.

Learn More

ECF-1 is an immersible cell recommended for conductivity measurements in clear and contaminated water, sewage with sediments, grease, oil, acids and alkalis. These can also be used for measurements in water paints.

Learn More

Complete hand polishing kit for electrodes. Includes 3 particle sizes. Learn More

Reference Electrode - Simple screw top makes refilling quick and easy.

Learn More

Pt Auxiliary / Counter Electrode
Platinum Area: 6.5 x 6.5 x 0.2mm

Ionode's Platinum Auxiliary / Counter Electrode have a large surface area, extra thick platinum for enhanced strength, glass body, and a gold-plated pin.

Learn More

Working Electrode - GC 3mm

Ionode glassy carbon disk electrodes are designed to be used in a range of voltammetric experiments. The glassy carbon  tip is polished to a mirror finish.

Learn More

Working Electrode - Platinum 3mm Diameter

Ionode gold button electrodes are designed to be used in a range of voltammetric experiments. The platinum disc is polished to a mirror finish.

Learn More

Working Electrode - Gold 3mm Diameter

Ionode gold disk electrodes are designed to be used in a range of voltammetric experiments. The gold disc is polished to a mirror finish.

Learn More

Ammonia gas sensing ion selective electrode. Supplied with three spare membranes and bottle of filling solution. Learn More

Ionode Intermediate Junction pH Electrode with replaceable electrolyte, general purpose & automatic temperature compensation.

pH Range:        0 - 14

Membrane:     A Glass – Spear

Body:                Polypropylene

Temp:               0 - 60ºC

Ionode ATC probes are compatible with a range of meters. Please contact us to find out if our probes will work with your meter.

Please note, these electrodes are made to order.



Learn More

Ionode Intermediate Junction pH Electrode with replaceable electrolyte, general purpose & automatic temperature compensation.

pH Range:        0 - 14

Membrane:     A Glass – Bullet

Body:                Polypropylene

Temp:               0 - 60ºC



Ionode ATC probes are compatible with a range of meters. Please contact us to find out if our probes will work with your meter.

Please note, these electrodes are made to order.

Learn More

IJ46 Intermediate Junction pH Electrode.

pH Range:      0 - 14

Membrane:   A Glass – Flat

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

PRFO Refillable ORP Electrode Learn More

Enhanced series Intermediate Junction ORP Electrode with platinum wire tip and replaceable electrolyte. With superior thermal and chemical properties.

Range:    ±2000mV

Sensor:   Platinum Wire

Body:      PVDF (Kynar)

Temp:     0 - 100ºC

Learn More

Intermediate Junction pH Electrode.

pH Range:      0 - 14

Membrane:   A Glass – Bullet

Body:              Polypropylene

Temp:             0 - 60ºC

Learn More

Dissolved oxygen sensor, galvanic type, with temperature compensation,4m cable, weight and BNC/RCA connectors Learn More
